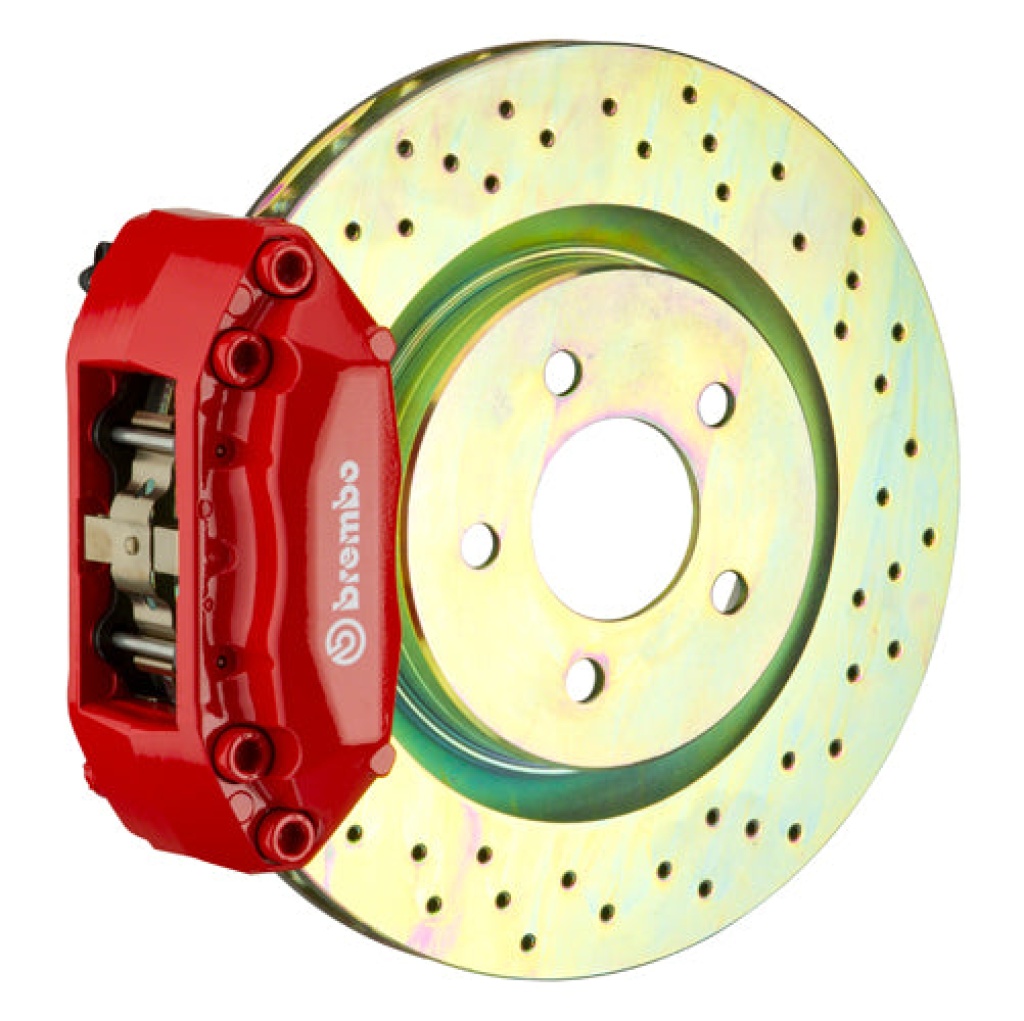

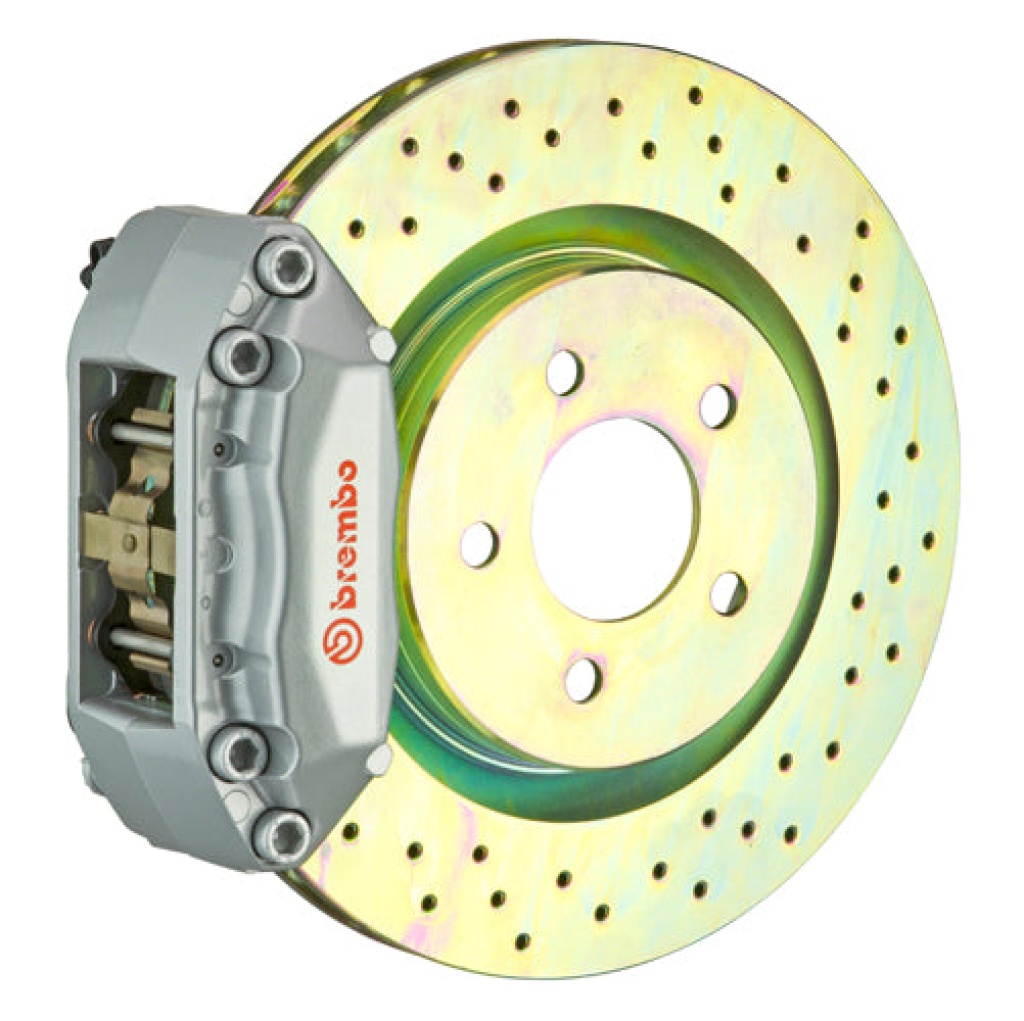

Product Description:

• (F) 4-Piston Calipers
• 330x28mm (13') 1-Piece Discs
• Complete Axle Set
• Pre-Assembled
• All Necessary Hardware Included

INTENDED USE

Street Track Race

___ ___ ___ ___ ___

CALIPER

• Cast 2-Piece Radial Mount
• Piston Configuration: 4-Piston
• Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot

DISC

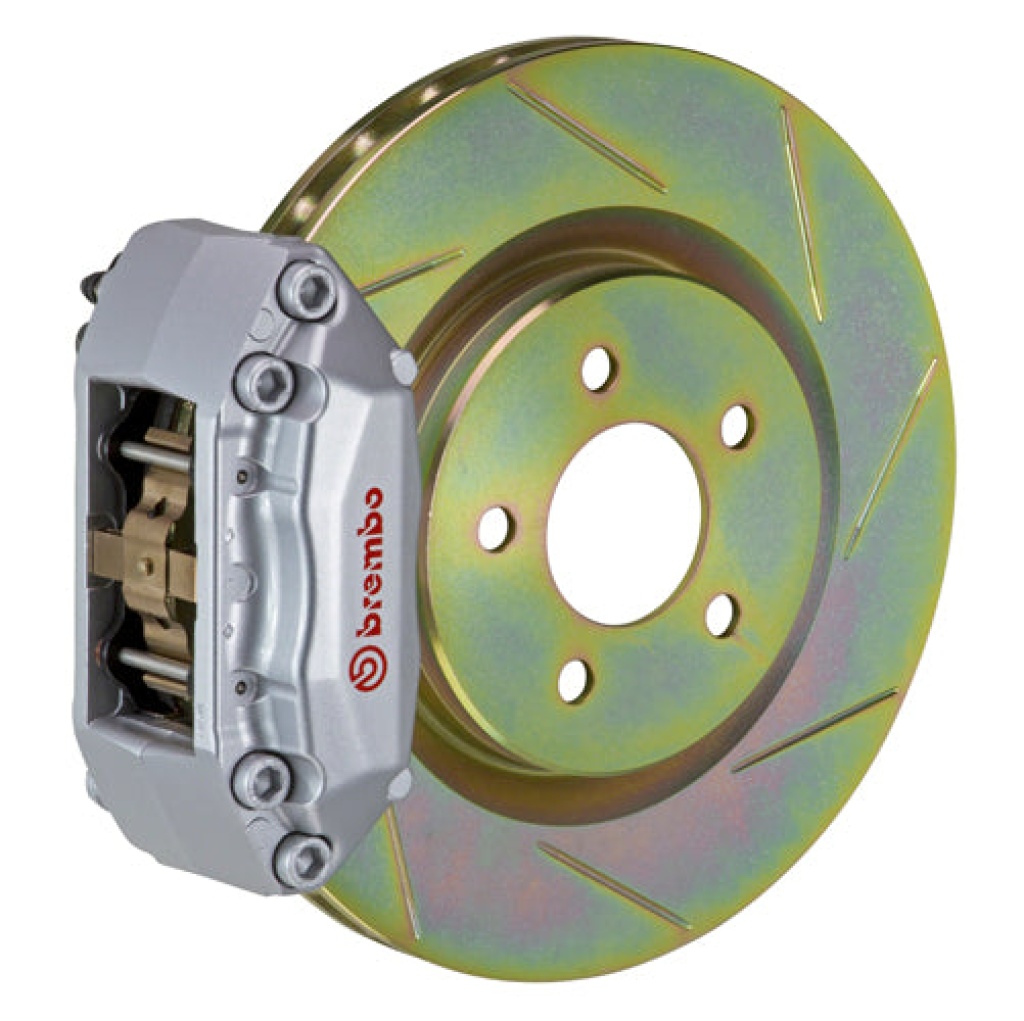

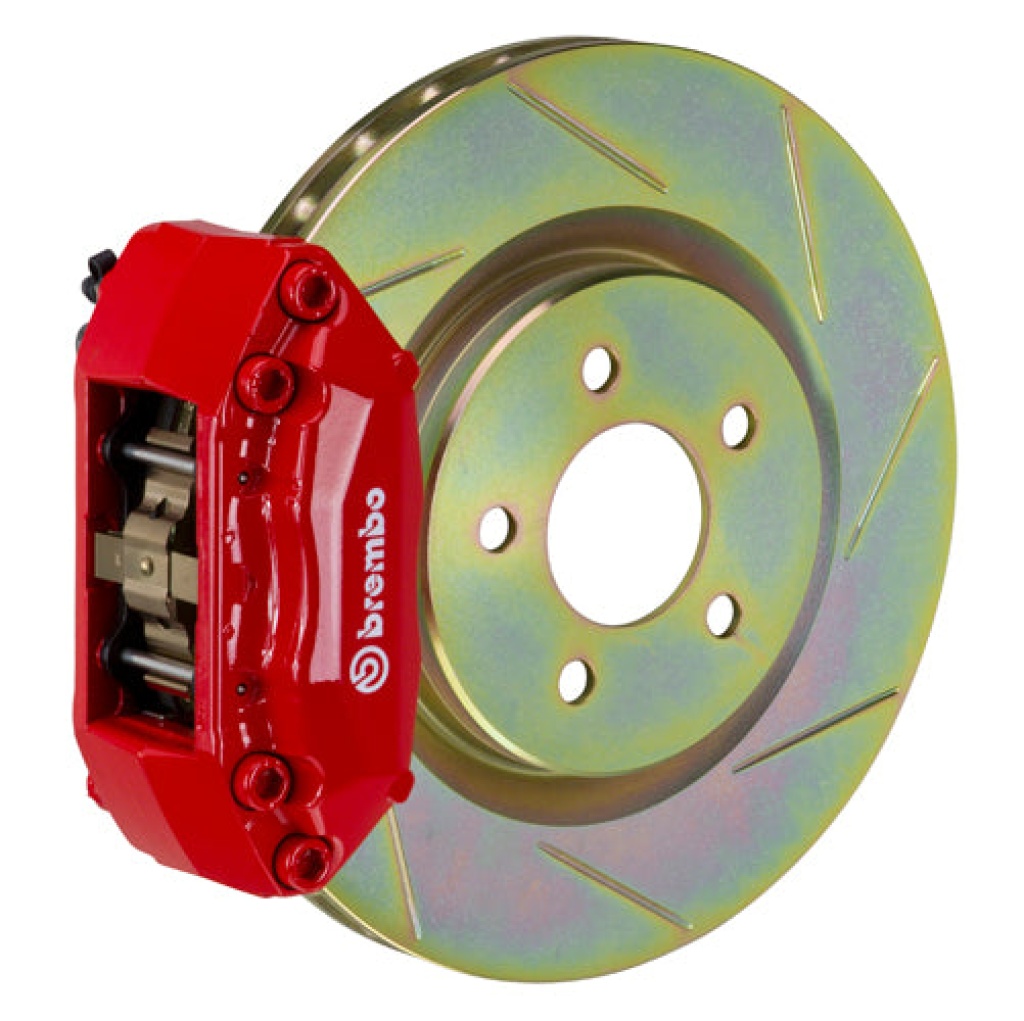

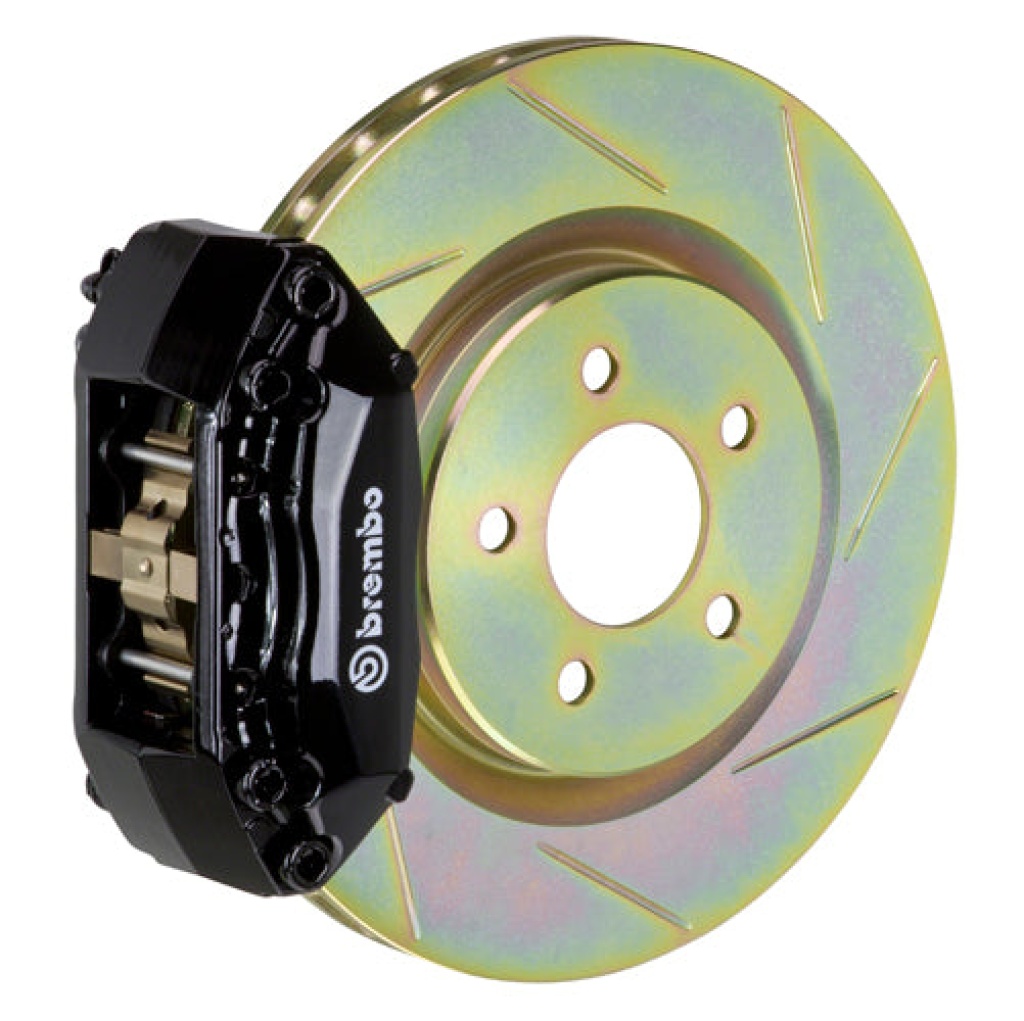

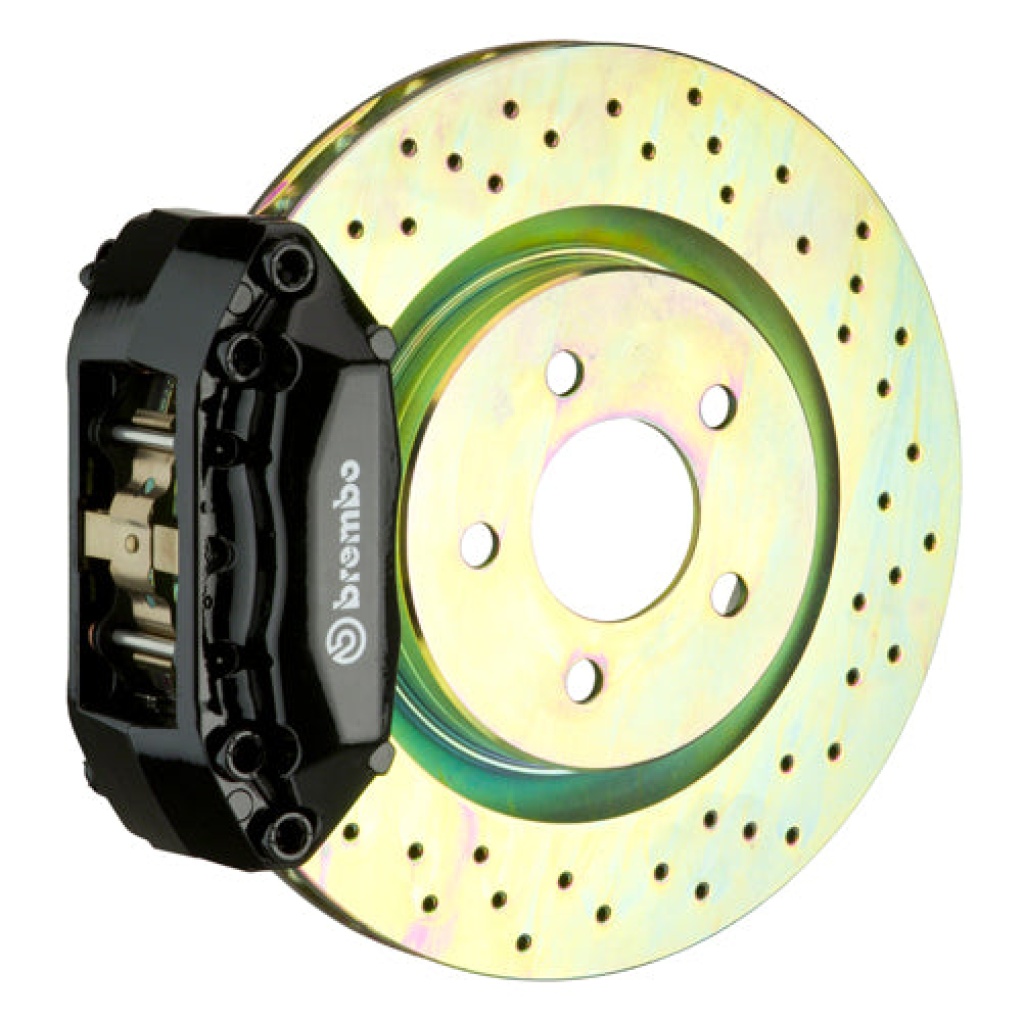

• Type: Cross Drilled or Type I Slotted
• Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
• Diameter: 330mm
• Width: 28mm
• Air Gap: 13mm
• Annulus: 56mm
• Construction: 1-Piece Disc Assembly
• Disc Vane Design: Vented Pillar Vane
• Disc To Hat Mounting System: N/A

FRICTION MATERIAL

• Brembo High Performance FM1000
• Pad Volume / Surface Area: 48.2 | 53.6

INCLUDED HARDWARE

• Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
• Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

NOTE: Requires modification to the OEM steering knuckle

WHEEL FITMENT

• How to Measure Wheels for Required Clearance
• Brake Profile Cross Section

Please contact us for custom color options.

Images are for representational purposes only. Actual product may vary.
