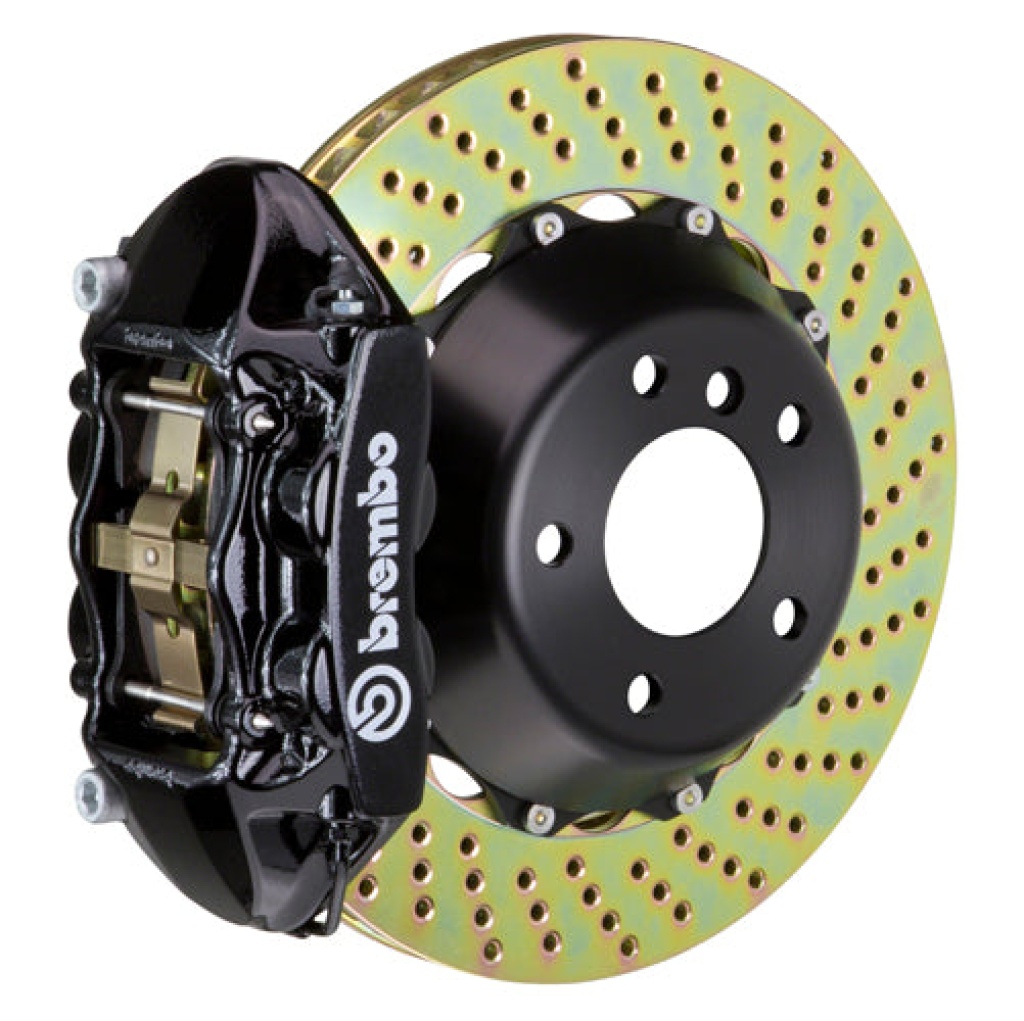

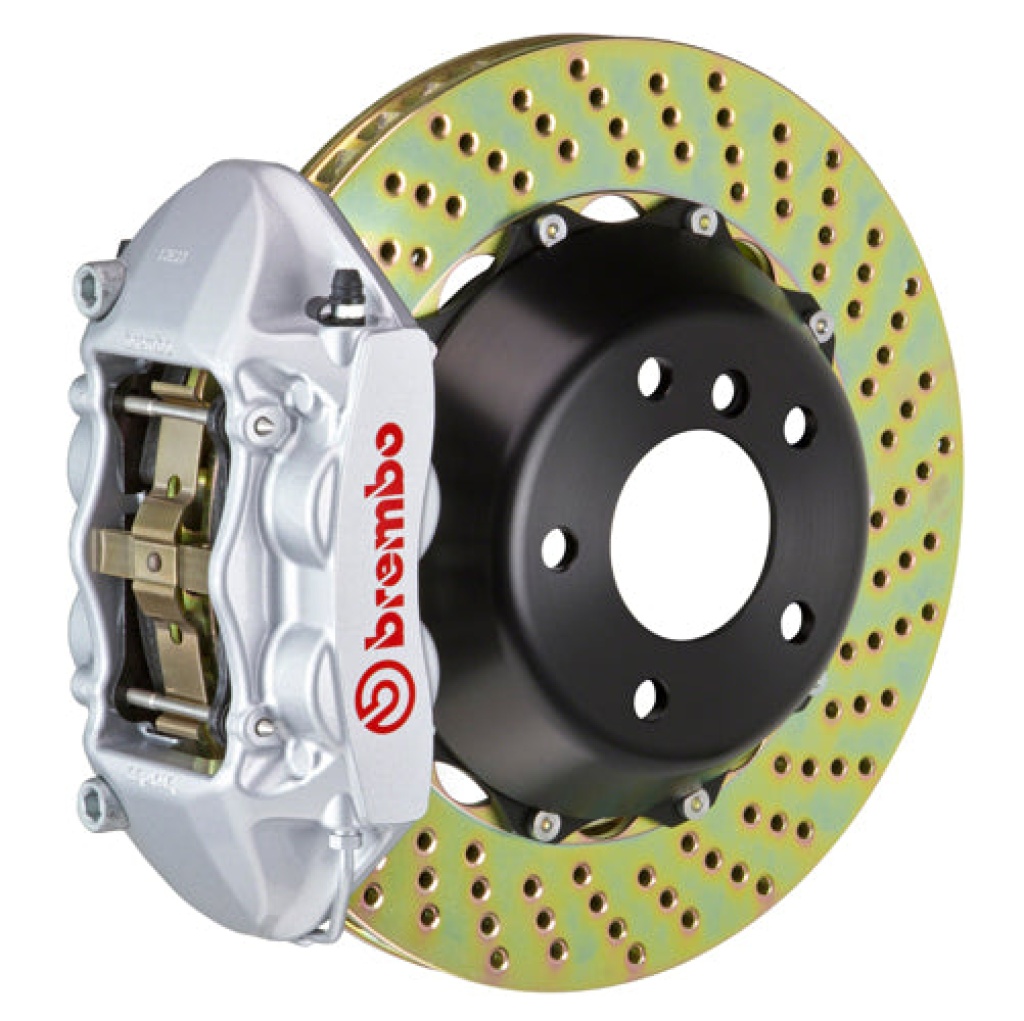

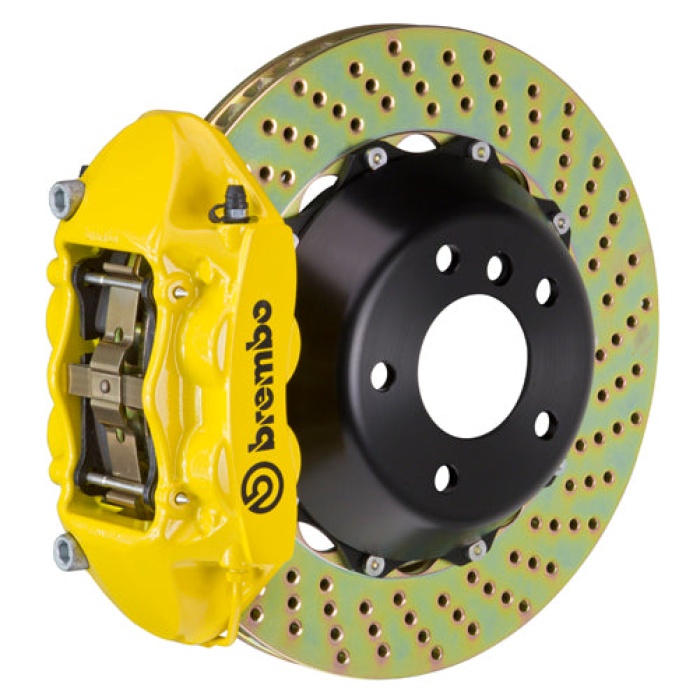

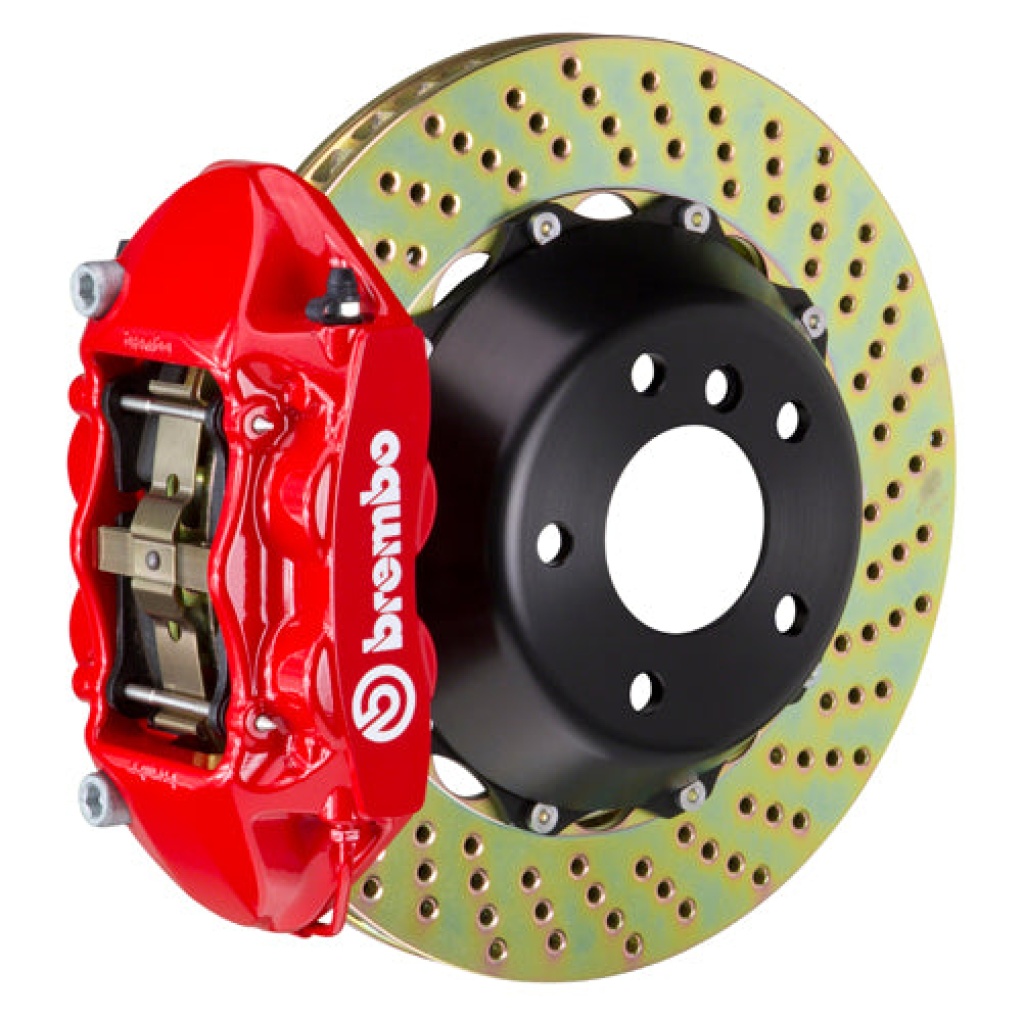

Product Description:

• (F) 4-Piston Cast Monobloc Calipers
• 365x29mm (14.4') 2-Piece Discs
• Complete Front Axle Set
• Pre-Assembled
• All Necessary Hardware Included

INTENDED USE

Street Track Race

___ ___ ___ ___ ___

CALIPER

• Body: Cast Monobloc Radial Mount
• Piston Configuration: 4-Piston
• Piston Design And Insert Type: Inner Pressure Seal / OEM Approved Dust Boot

DISC

• Type: Cross Drilled
• Material/Finish: Advanced High Carbon Alloy / Corrosion Resistant Plating
• Diameter: 365mm
• Width: 29mm
• Air Gap: 14mm
• Annulus: 59mm
• Construction: 2-Piece Disc Assembly
• Vane Design: Vented Curved 48 Vane
• Disc To Hat Mounting System: Floating D-Bobbin with Anti Rattle Spring

FRICTION MATERIAL

• Brembo High Performance FM1000
• Pad Volume / Surface Area: 76.4 | 62.1

NOTE: 1995 E36 M3 models require minor modification to the lower control arm outboard of the ball joint

INCLUDED HARDWARE

• Brake Lines: Proprietary Brembo Stainless Steel Braided Brake Lines by Goodridge
• Mounting Hardware: Brembo Engineered CNC Billet Caliper Adapters - All Necessary Hardware Included For Ease of Installation

WHEEL FITMENT

• How to Measure Wheels for Required Clearance
• Brake Profile Cross Section

Please contact us for custom color options.

Images are for representational purposes only. Actual product may vary.
