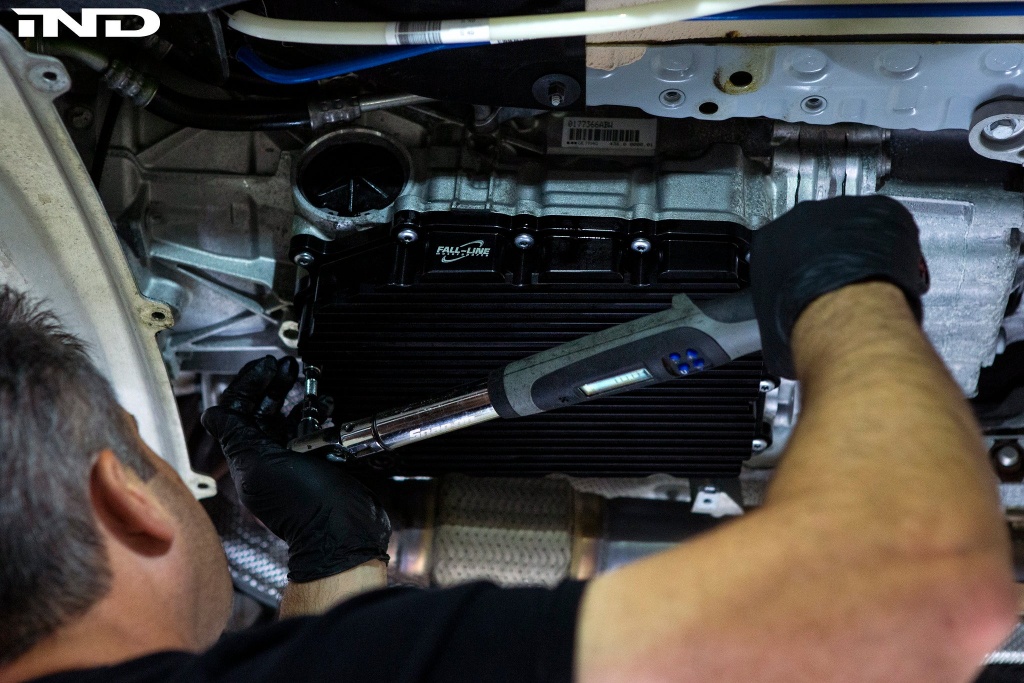

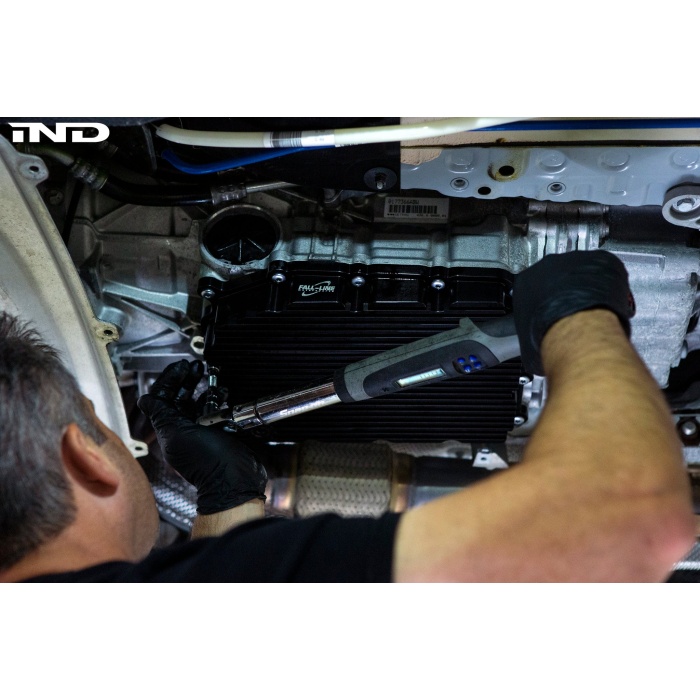

The Ultimate DCT Oil Pan. Fall-Line has designed an incredible 6061-T6 aluminum oil pan upgrade for DCT cars and we are proud to be amongst the first to offer it to BMW enthusiasts the world over.
The plastic OEM pan is prone to leaking and uses a brittle gasket that requires replacement over time. The Fall-Line pan uses a bespoke Viton O-Ring that resides within a clever internal channel. Viton O-Rings, due to their exceptional resistance to temperature extremes (-20°F to 400°F operating temp) and low gas permeability, have incredible aging characteristics and therefore eliminate the need for regular replacement.

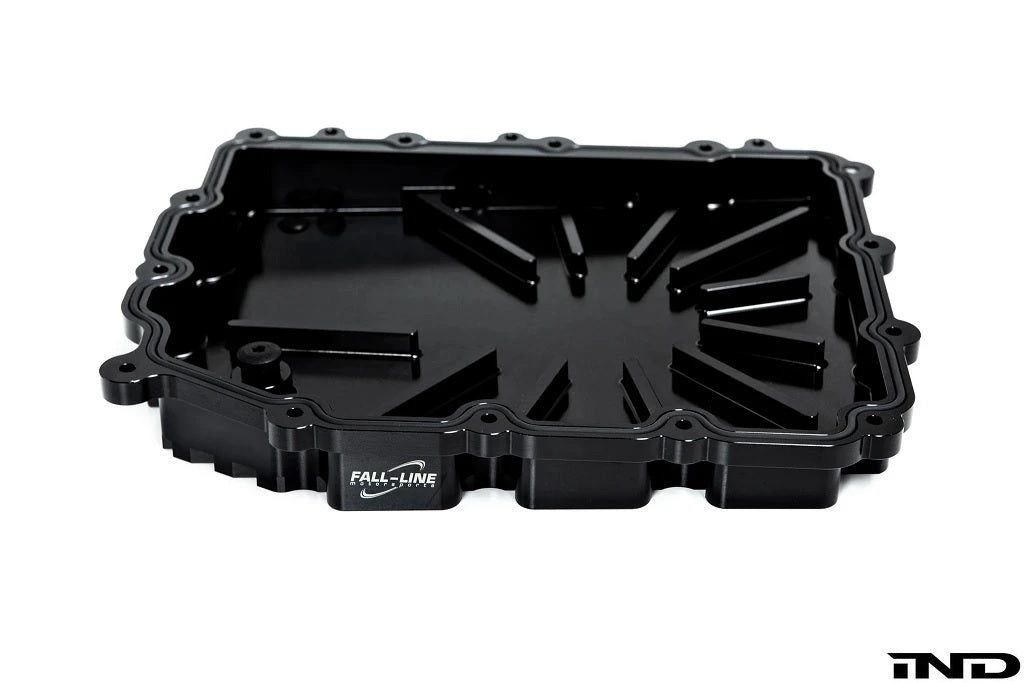

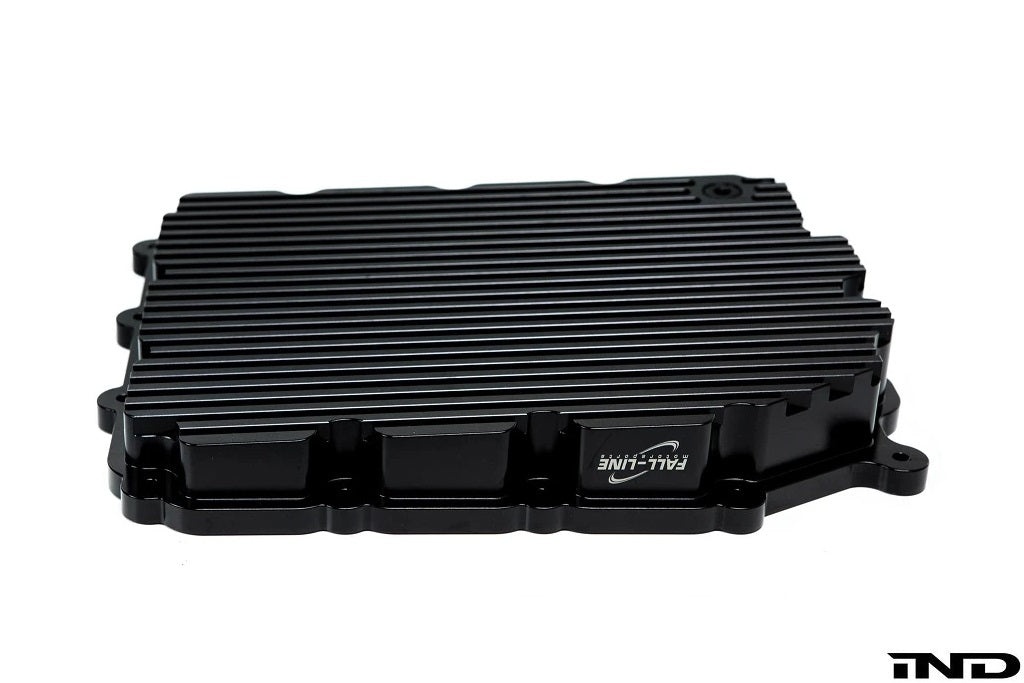

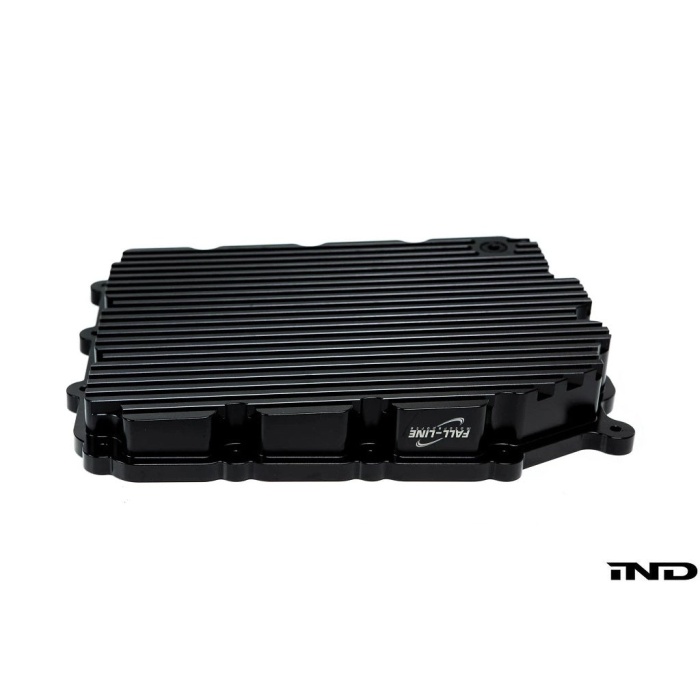

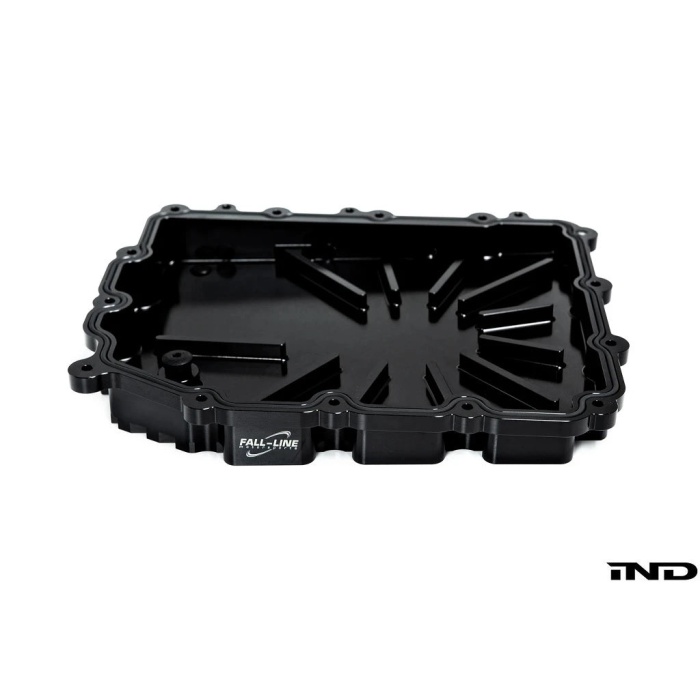

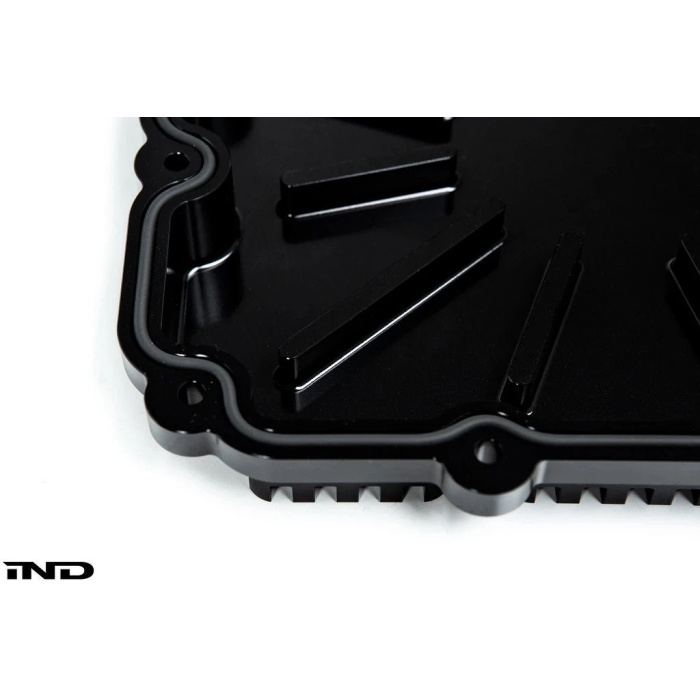

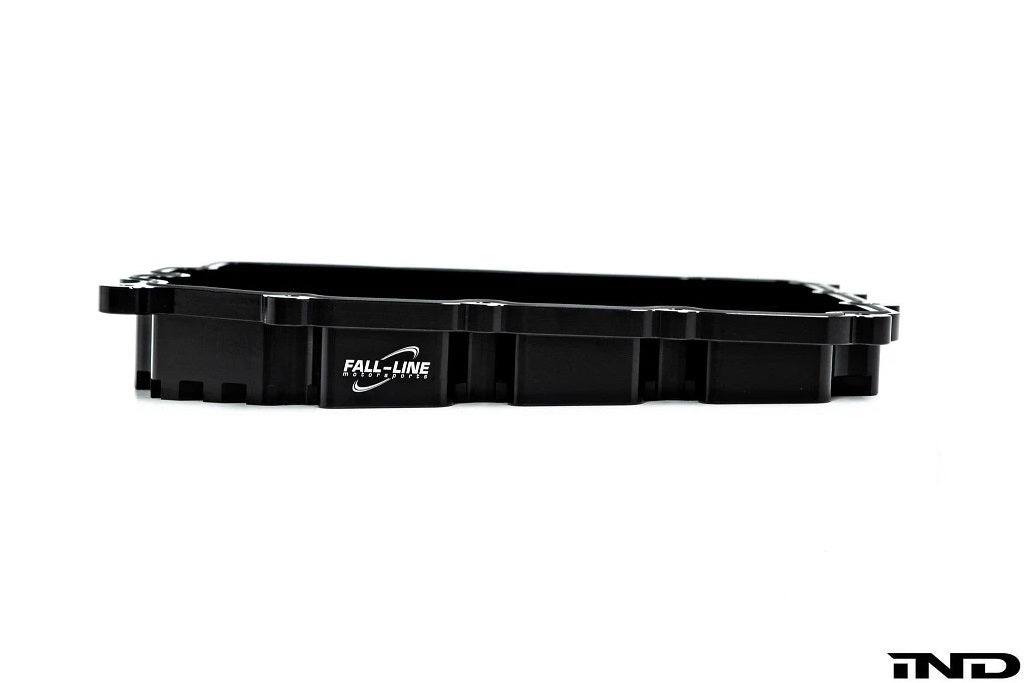

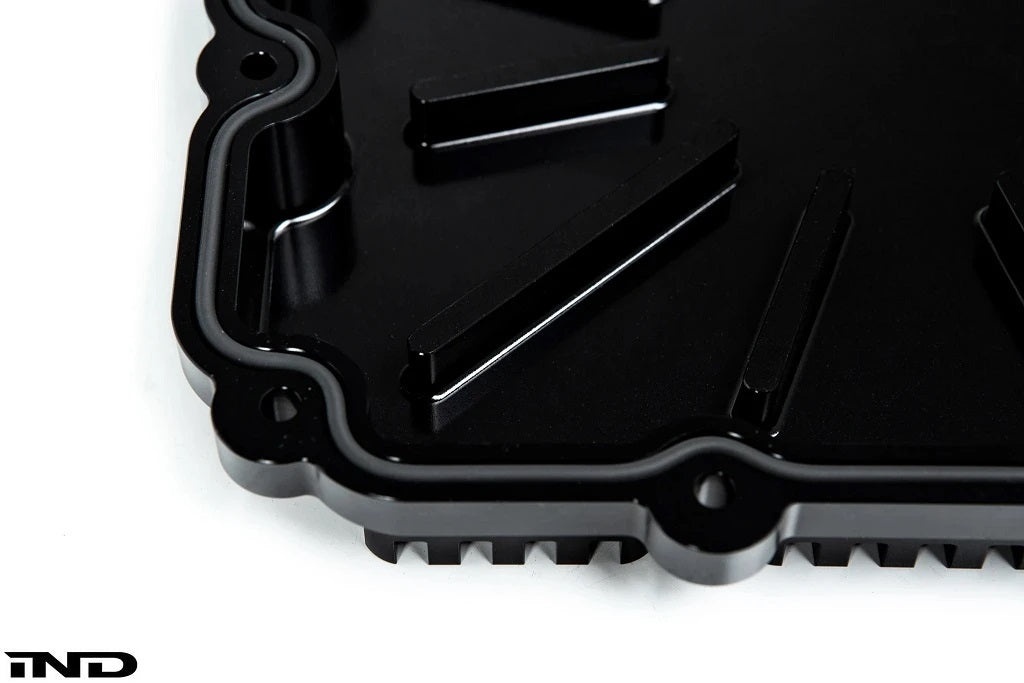

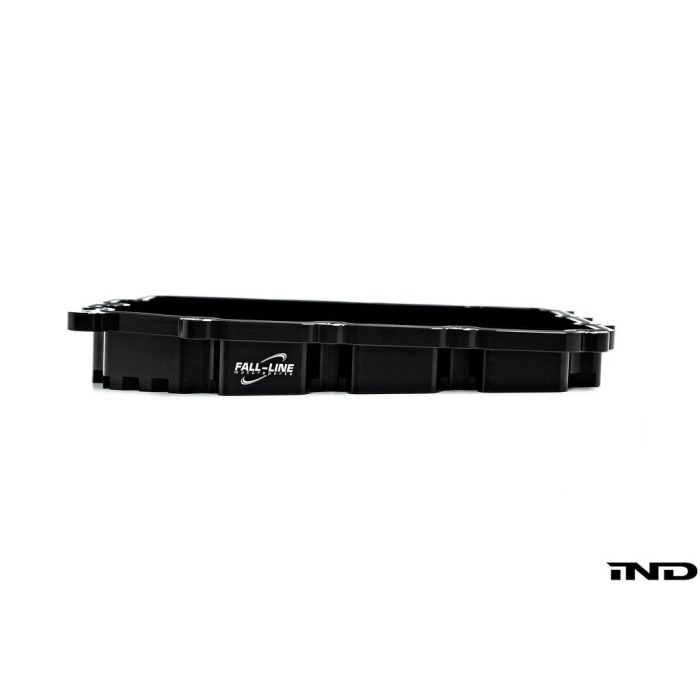

Internal baffling is optimized to eliminate oil starvation in racing conditions and extended radiator fins protrude from the pan's surface to provide additional cooling, but unlike other DCT pans on the market that can drag on the road during motorsport use, the Fall-Line pan upgrade does not compromise ground clearance due to its angled design, yet still offers a valuable increase in fluid capacity.
The Fall-Line pan also offers external ports to route AN fittings for an additional DCT cooler.
Product Details:
Compatible with all DCT BMW cars (full application list below)
5-Axis DMG Mori CNC machined 6061-T6
Internally baffled to relieve oil starvation + increased capacity
Viton O-Ring eliminates OEM gasket and regular replacement intervals
Re-uses OEM magnet
Hard coat black anodized for wear / corrosion resistance
Provisions to run external oil cooler for motorsport use

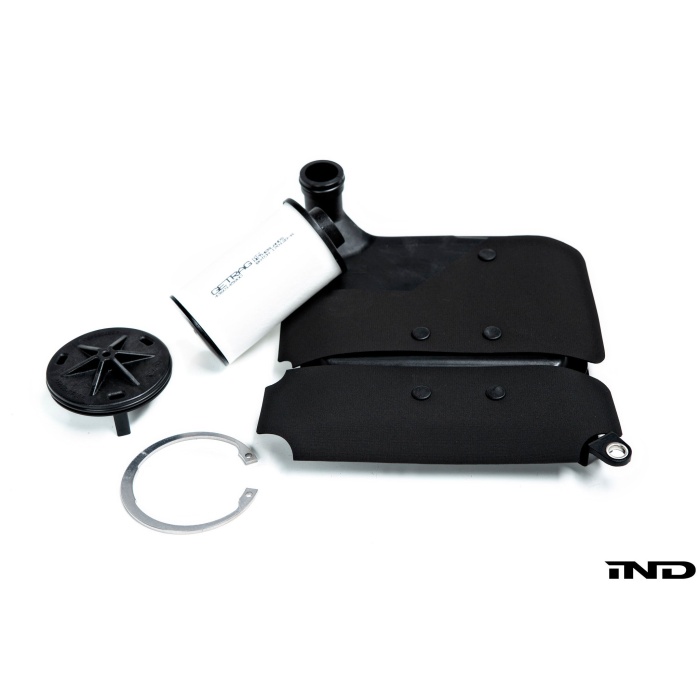

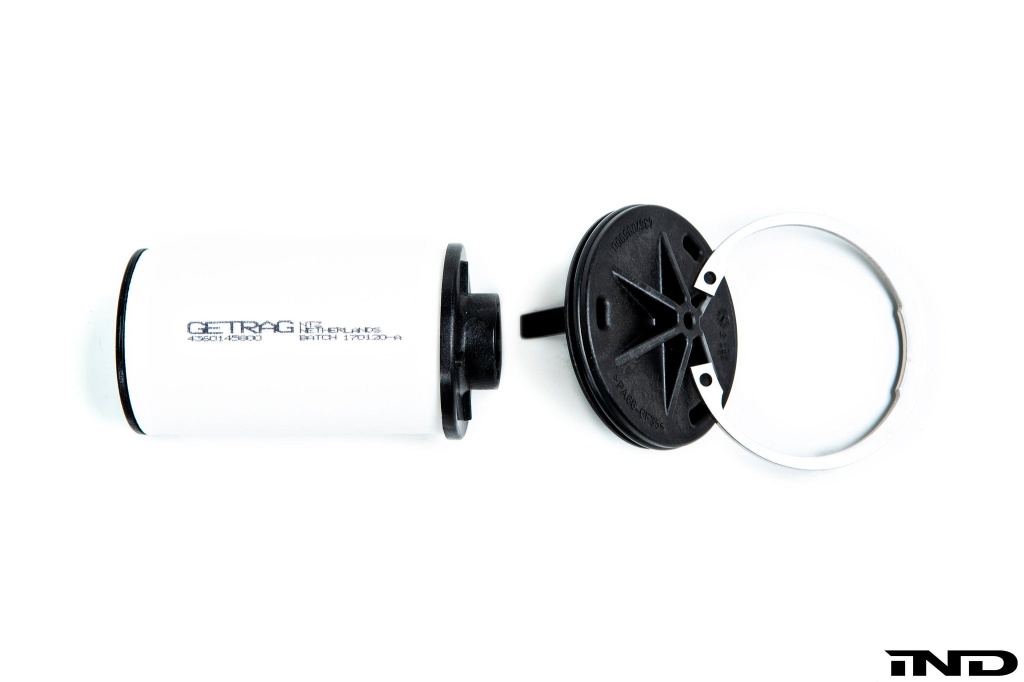

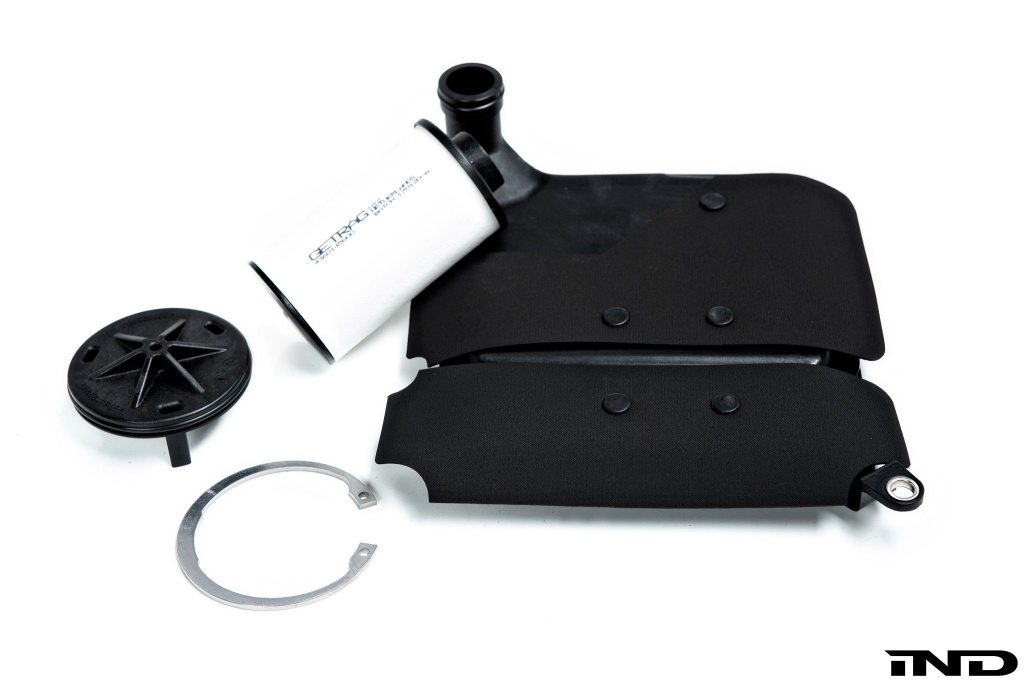

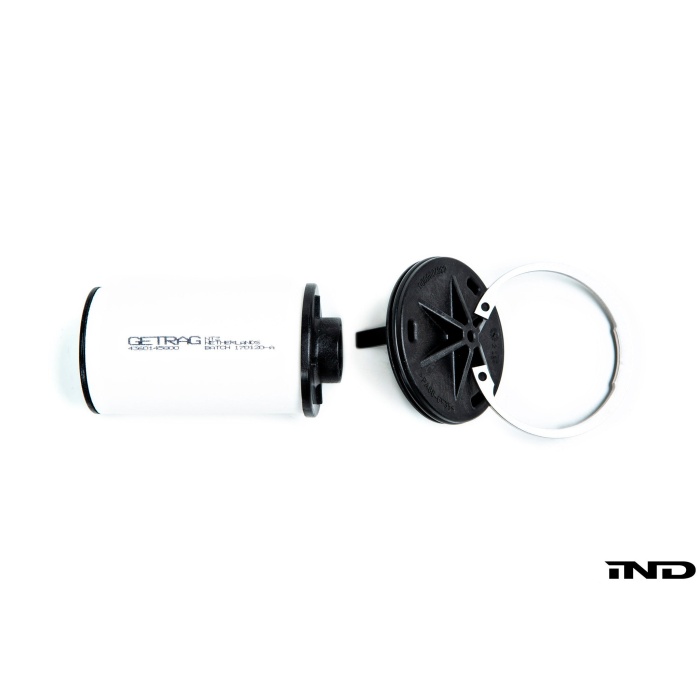

Optional add-on: OEM filter set (includes suction and transmission filter)
Made in USA
Application List:
E82 and E88 135i
E9X 335i, 335is, M3
F8X M2 / M3 / M4 / M4 GTS
F10 M5
F06 / F12 / F13 M6
Z4 (E89)
