Madtrace ZN8 GR86 GEN2 PODIUM Line Racing Steering Wheel System

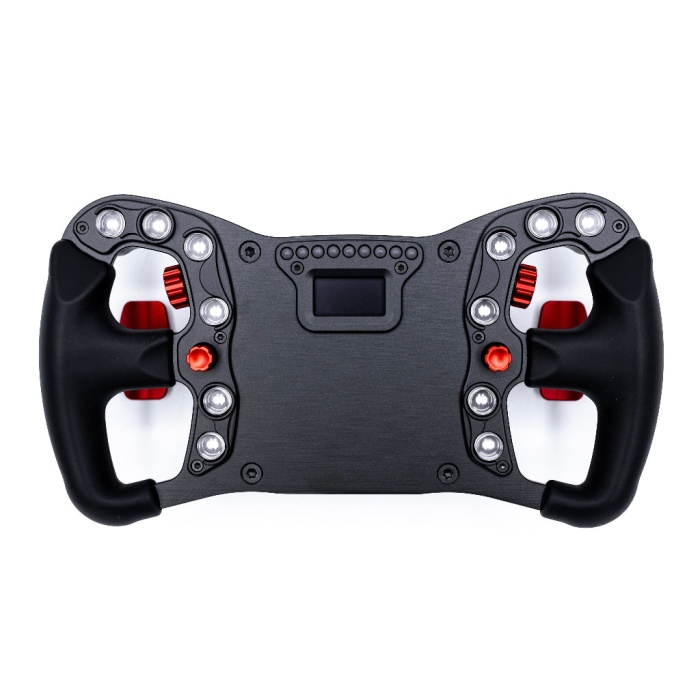

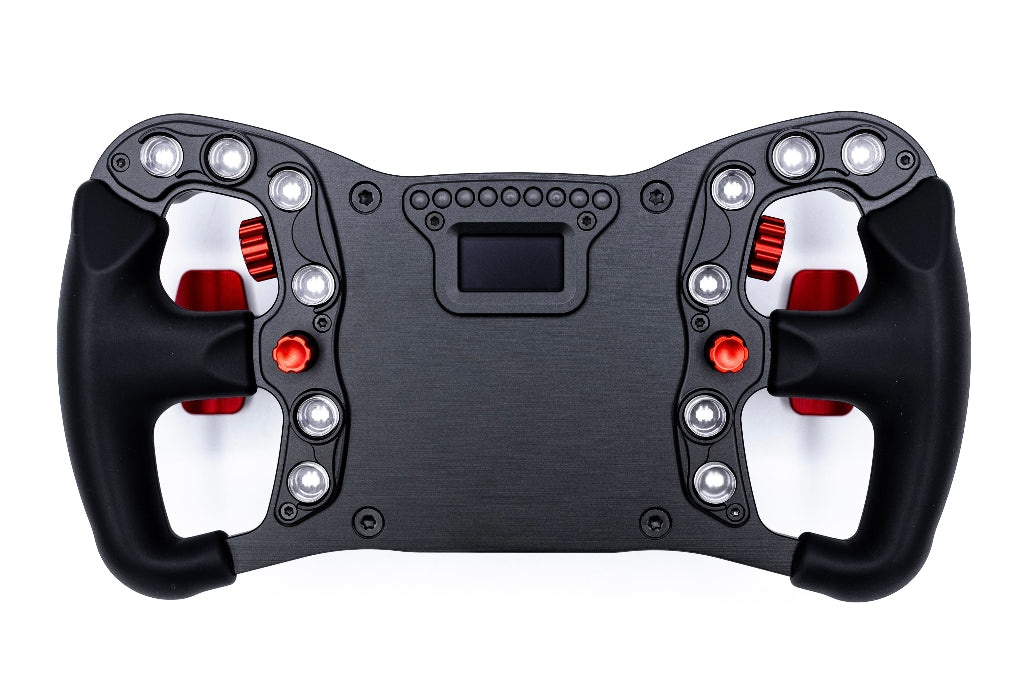

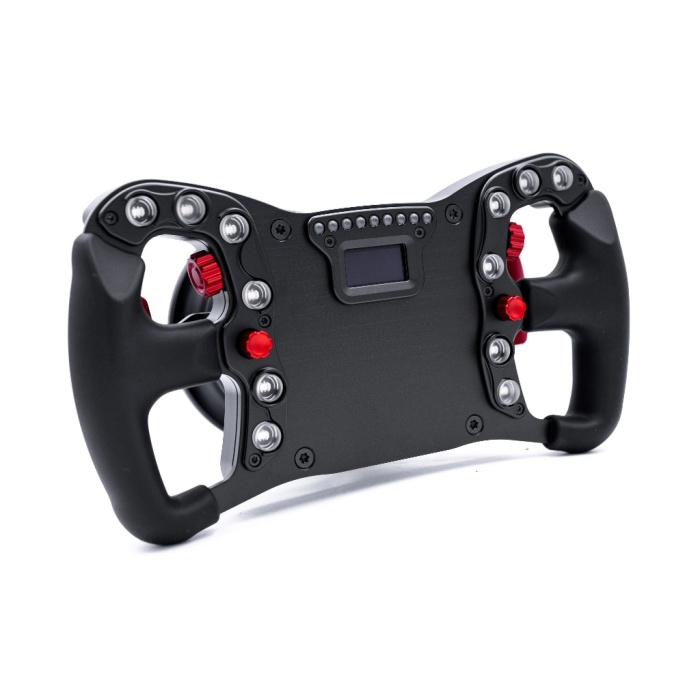

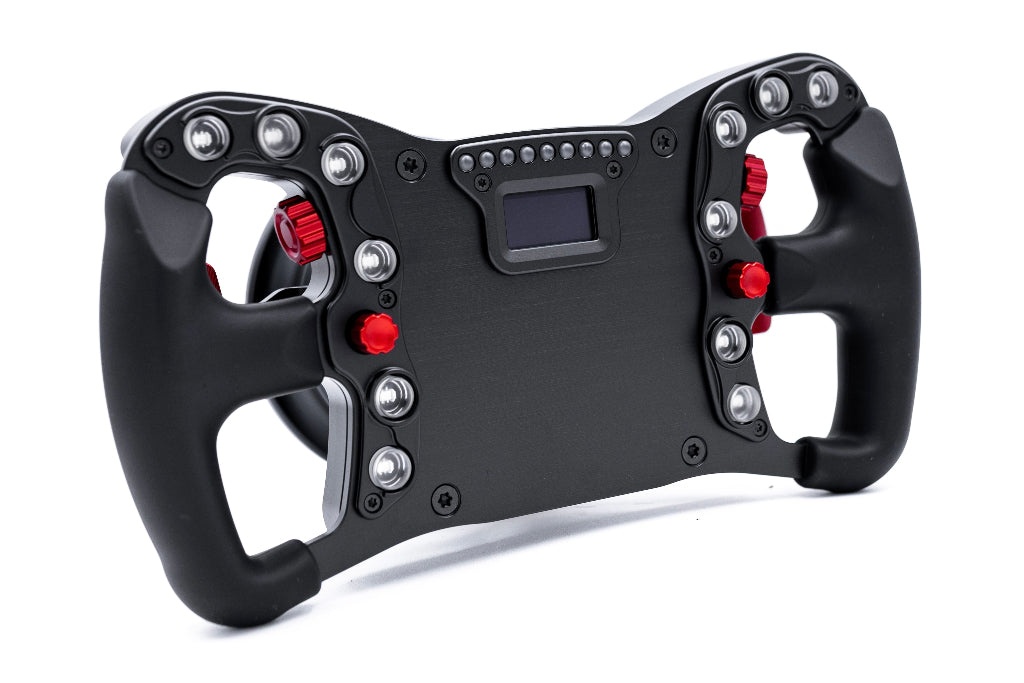

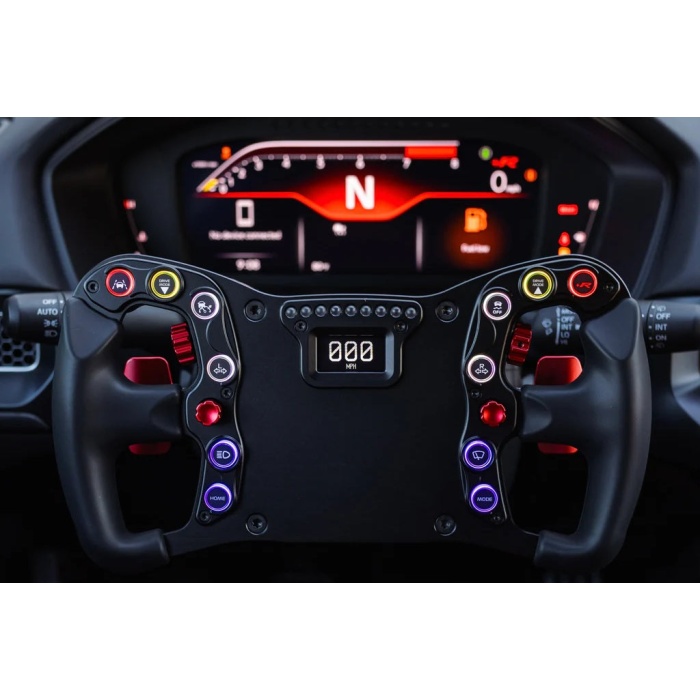

Introducing the endurance motorsport inspired JQ Werks Madtrace® FORMULA Line Racing Steering Wheel System for Toyota ZN8 GR86 / Subaru ZD8 BRZ. This first of its kind system brings authentic GT3/GT4 race car ergonomics directly to your fingertips, featuring a 290 mm precision machined billet aluminum housing with smooth, high grip rubber for maximum safety. The FORMULA Line shares the advanced technology of our PODIUM Line Racing Steering Wheel System, and is the industry’s first steering wheel system to integrate both CAN bus and LIN bus within a single hub, ensuring flawless communication with your factory electronics. No splicing. No wiring headaches. Just true plug and play simplicity.
Materials and Construction
Built from 6061-T6 billet aluminum with smooth, high grip rubber, the FORMULA Line system delivers a perfect fit and premium feel. Finished in sleek black and red anodizing, it pairs seamlessly with our matching adapter hub and quick release, both made from the same 6061-T6 aluminum for exceptional strength, durability, and reliability. Built to perform. Made to last.
CAN Bus Integration

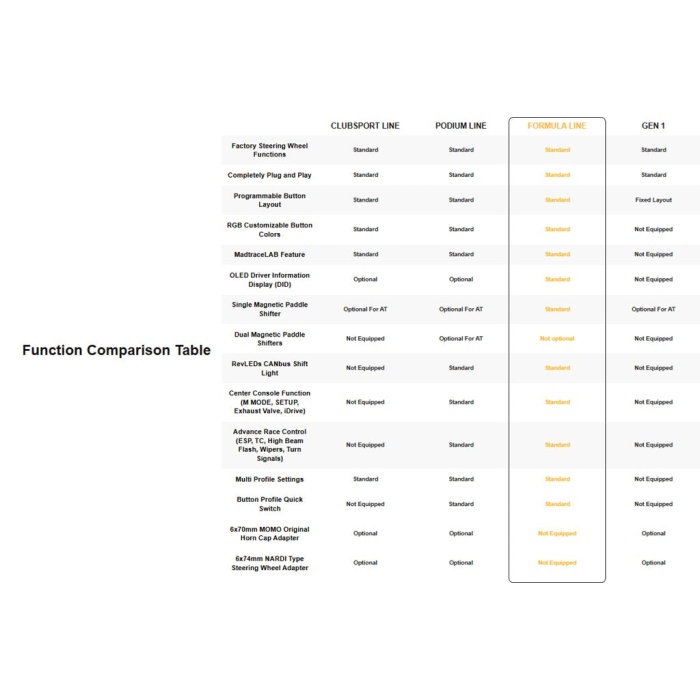

Exclusive to the PODIUM and FORMULA lines, this integration unlocks over 40 additional OEM functions (chassis dependent) such as high beam flash, wipers, turn signals, traction control adjustments, and shift light activation, all managed directly from the steering wheel. Every function is accessible without modifying factory wiring.

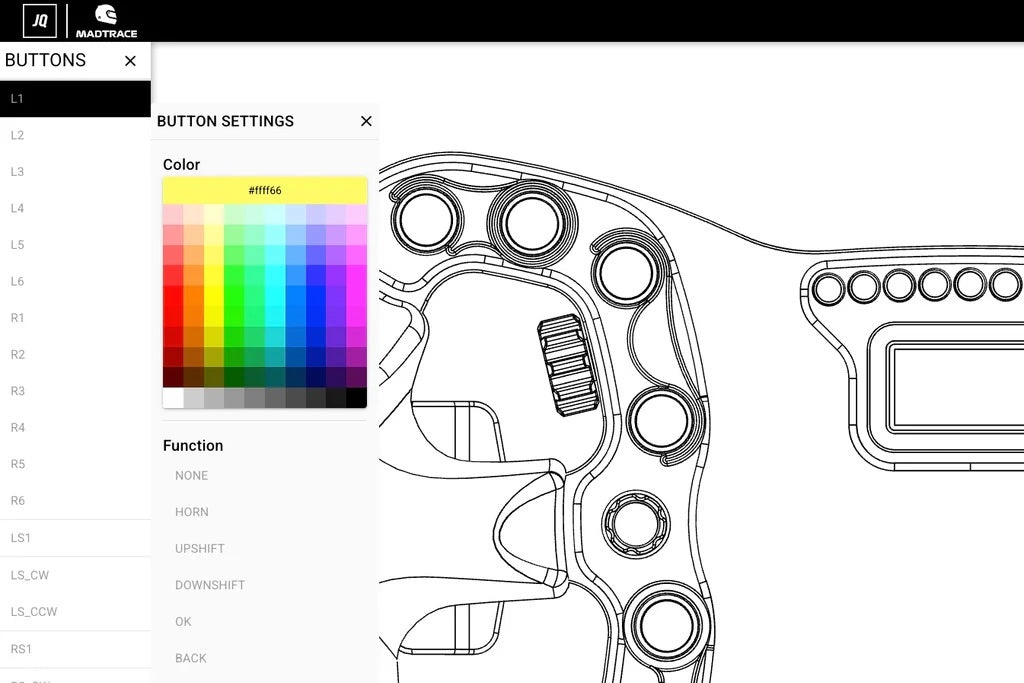

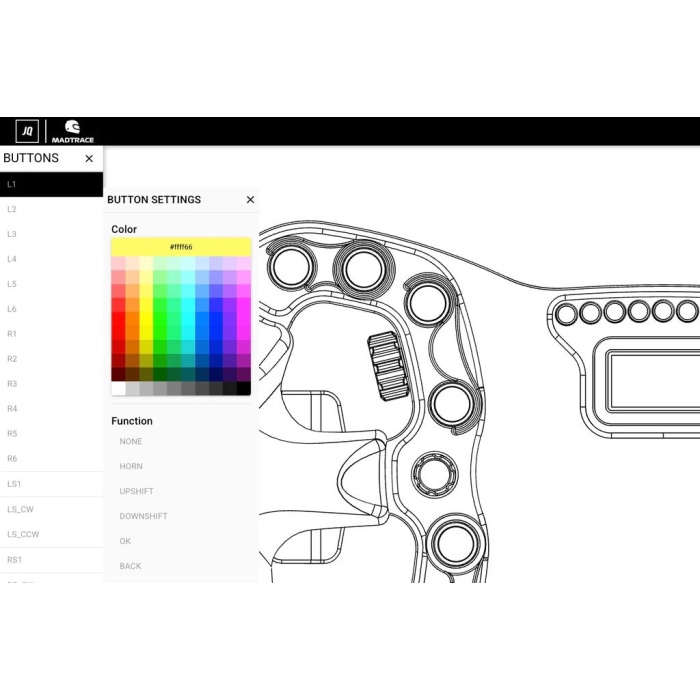

MadtraceLAB 1.0 Software
- Fully customizable button layouts
- Update firmware via a discreet USB-C port
- Manage profile settings and future feature expansions
All adjustments can be made through MadtraceLAB or the equipped Driver Information Display (DID).
Profile Settings and Button Mapping

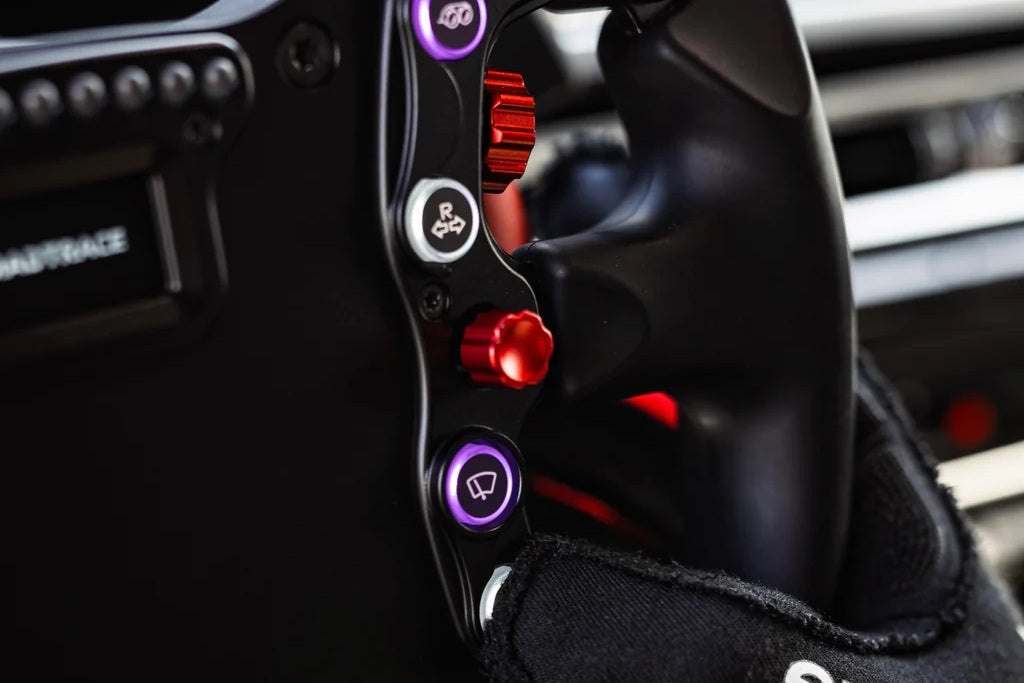

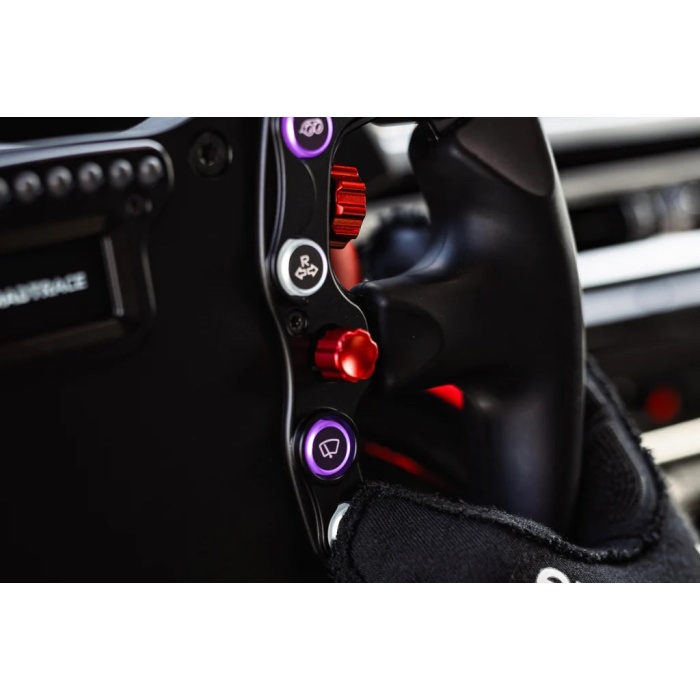

A key highlight of the FORMULA Line system is its Profile Settings and Button Layout Mapping. Whether you’re dialing in for changing track conditions, personal driving preferences, or even swapping the system between cars, you can store up to three fully customizable profiles directly in the hub’s internal memory for instant recall. With access to over 40 OEM CAN bus functions, every command can be mapped seamlessly across the eight front facing buttons and dual joystick knobs, putting complete control at your fingertips.
Examples:
- Profile 1 (G87 M2): M1, M2, Cruise Control SET/RES, Bluetooth, Cluster Menu with white backlighting
- Profile 2 (GT4RS): Front Axle Lift, ESP+TC OFF, Turn Signal, Wiper, PDK SPORT, PSE with red backlighting
Quick Profile Switching
To give drivers quick adaptability, we designed the Layout Switch Function. With a simple press of right bottom front facing button switch, you can instantly swap between your saved button maps and LED profiles on the fly.

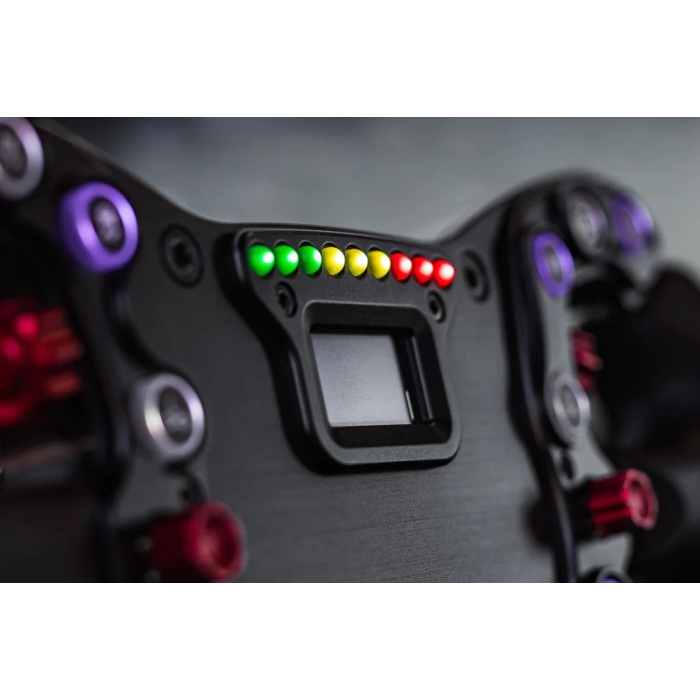

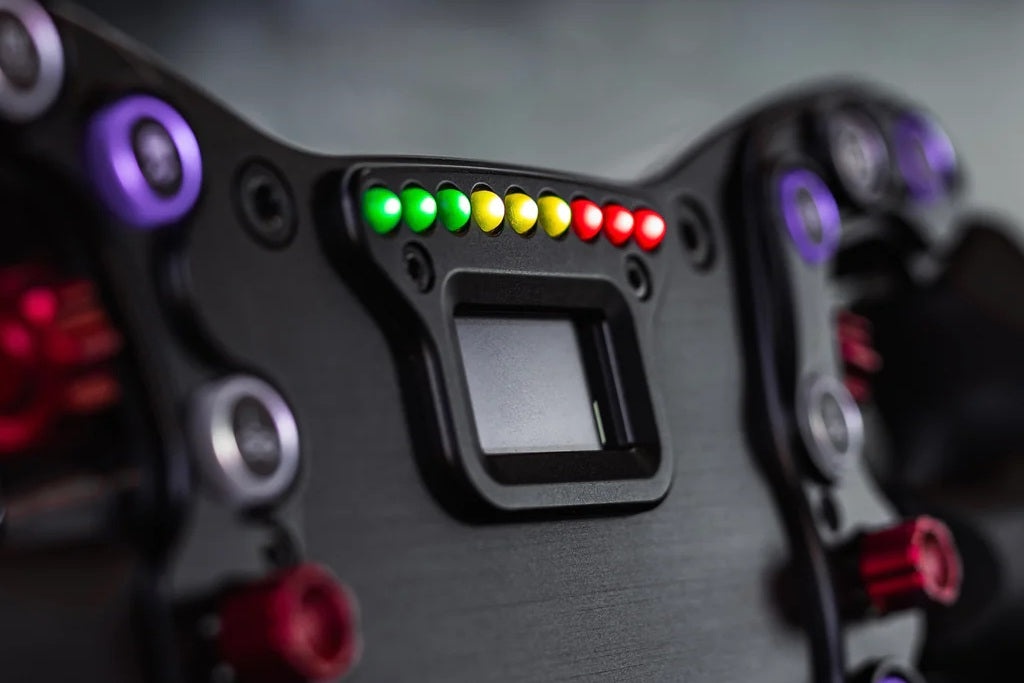

RevLEDs Shift Light Integration
The RevLEDs CAN bus shift lights provide real time response for precise gear changes. As the engine approaches redline, the LEDs illuminate sequentially and flash red at maximum RPM.

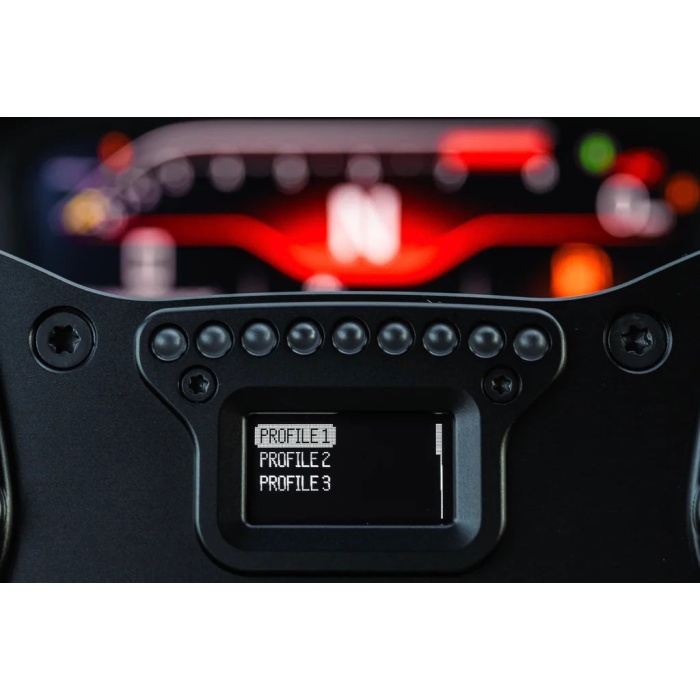

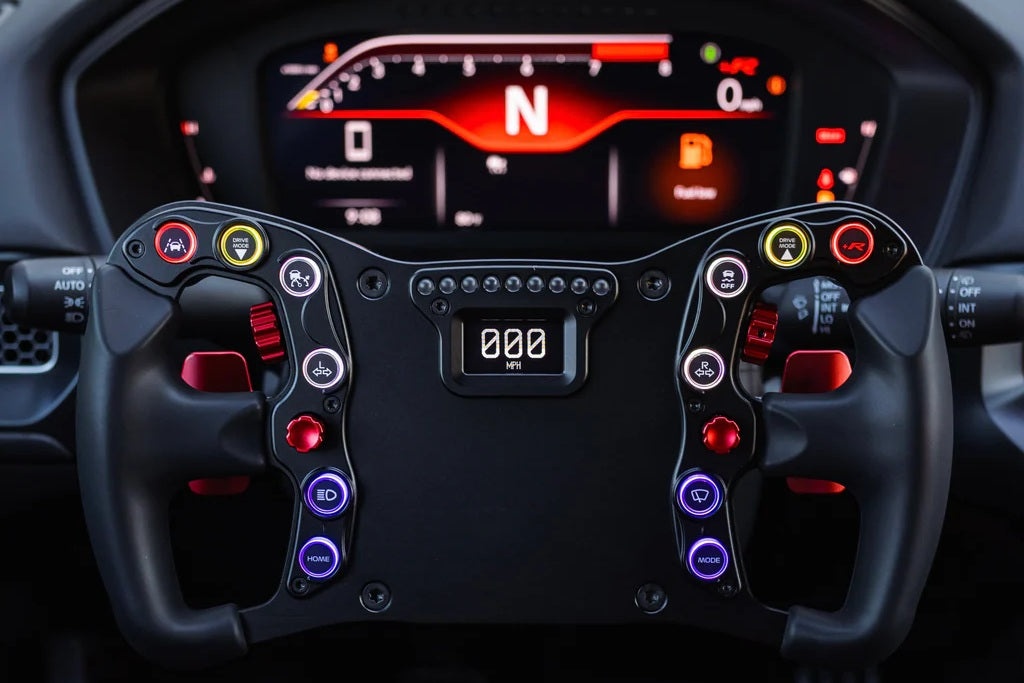

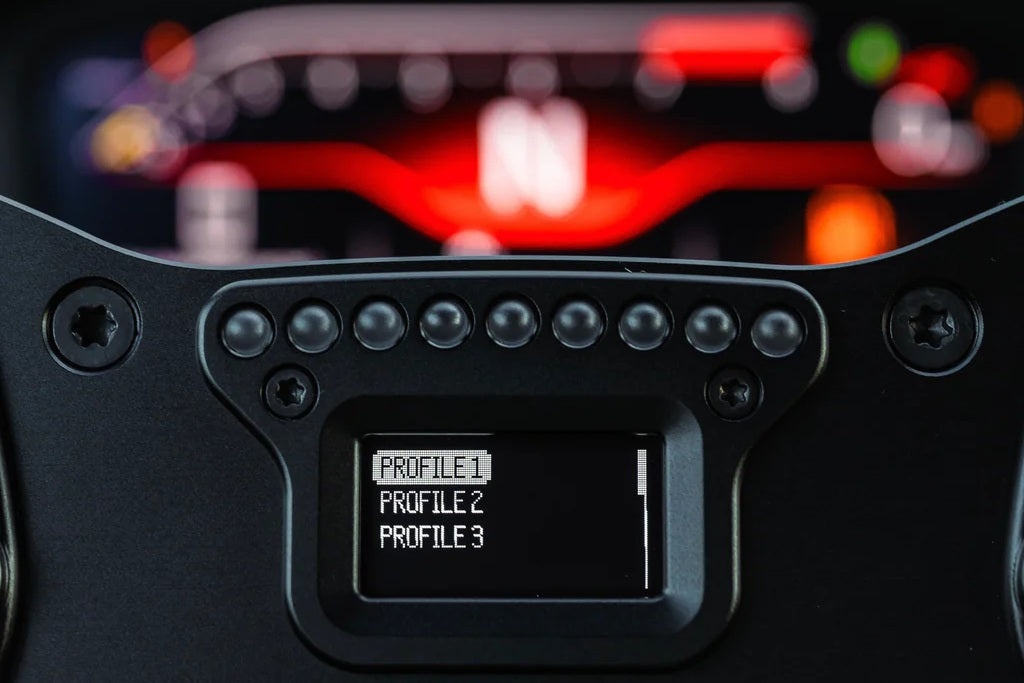

OLED Driver Information Display (DID)
- Every FORMULA Line racing steering wheel system comes equipped with the PODIUM Line optional OLED Driver Information Display (DID), positioned directly beneath the RevLEDs shift lights
- Shows real time telemetry thanks to our integrated CAN bus support
- Adjusts RGB button lighting and display brightness
- Allows on the fly profile switching and button remapping without a computer

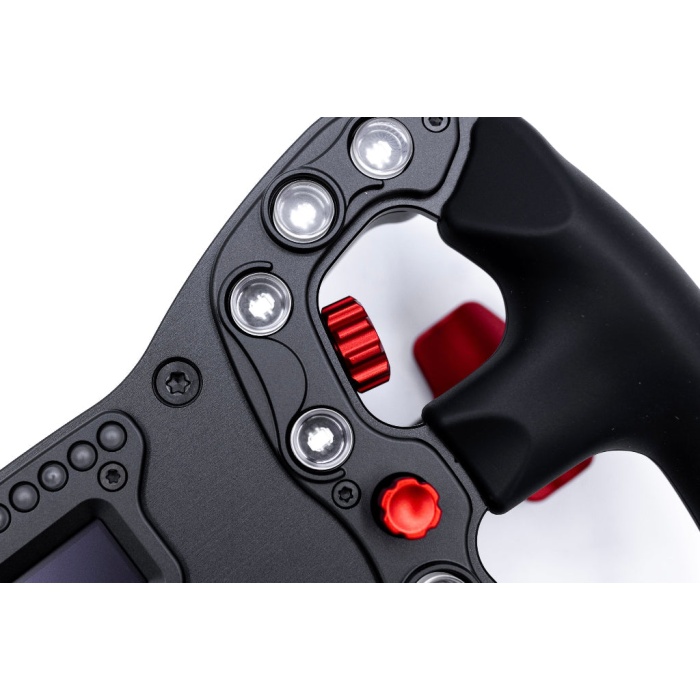

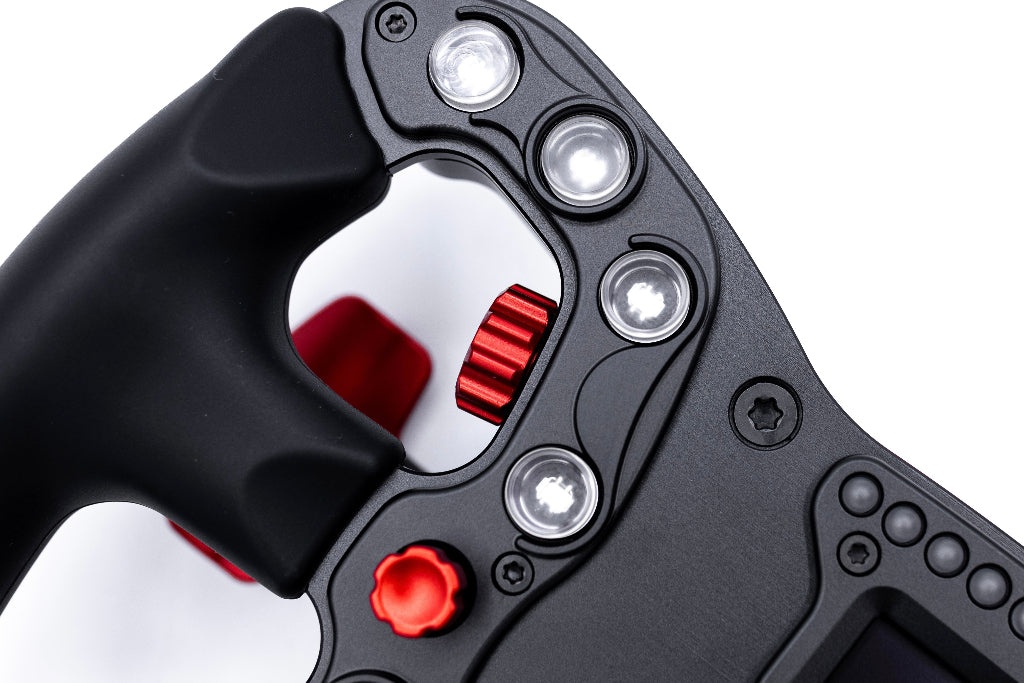

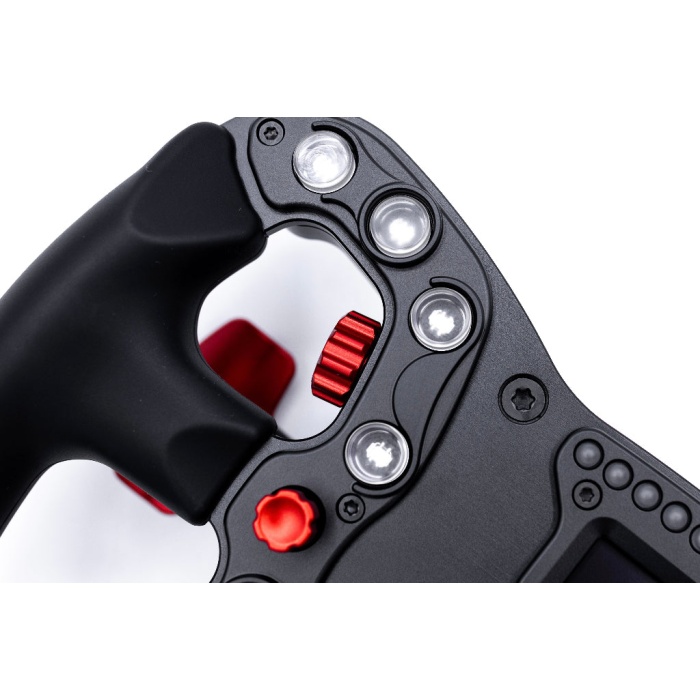

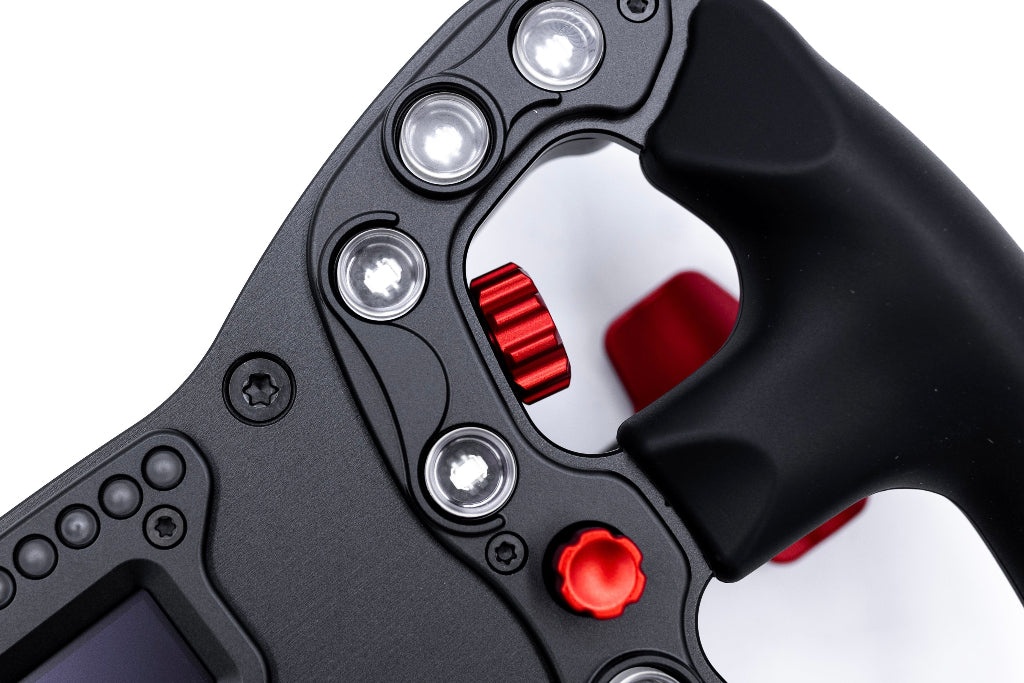

Magnetic Paddle Shifters
Elevate your shifting experience with our signature magnetic paddle shifters, it gives strong magnetic force for crispy gear shifting, and the paddles can be program with MadtraceLAB for upshift, downshift or something else if the car is equipped with manual transmission.
Important Notes
This product is intended for off-road, track, and competition use only. It is not legal for street use and should not be installed on vehicles subject to safety inspection. Because the system removes the factory airbag, drivers must use a 6-point racing harness and a racing roll-bar setup for safe operation. Consult local regulations to ensure compliance.
What’s Included
- PODIUM / FORMULA Line Control Hub Unit
- Quick Release Base with Integrated Chassis PCB
- CAN bus Integration Module
- Harness Kit
- Resistor
- Adapter Hub
- Adapter Hub Locking Wrench
- Trim Removal Tool
- Hardware Kit...
